Why Choose Texitile Calender Products from Lanhang
1. We're founded in 1992, with more than 20 years' professional experience
2. Fourtune global 500 companies' supplier, such as Dow Corning, Shin-Etsu...
3. Overseas service center available (in Europe, Japan, Dubai, etc.)
4. International CE, SGS, IAF, CNAS certification
5. National high-tech enterprise / products
6. We own various National Patent for Inventions Letters for rubber & plastic machinery
7. ISO9001:2008 management

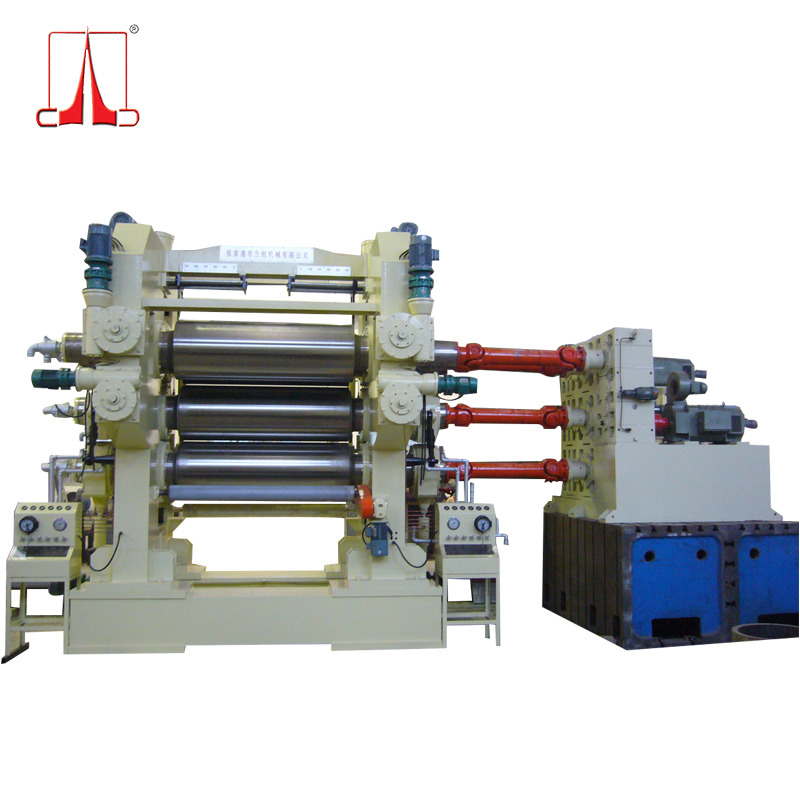

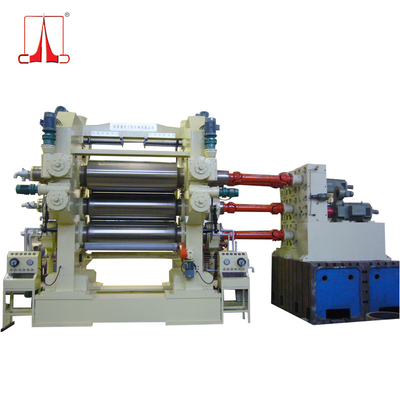

Application of Lanhang Brand Texitile Calender
This machine mainly uses in the rubber (tires, belts, fabric, textile fiber rubberizing and so on),the plastic (thin film, sheet, thin sheet plate, wallpaper, floor and so on.) formation processing.
Main Parameters of Our Texitile Calender
|
Model |
XY-4L 630 XY-4Γ 630 XY-4L 630 |
XY-4Γ 1120 |
XY-4Γ 1400 |
XY-4Γ1500 |
XY-4Γ 1730 |
|
Roller Diameter (mm) |
Φ230 |
Φ360 |
Φ400 |
Φ450 |
Φ610 |
|
Working Length (mm) |
630 |
1120 |
1400 |
1500 |
1730 |
|
Roller Linear Speed |
1.5~15 m/min |
||||
|
Speed Ratio |
1:1.2:1.2:1 |
||||
|
Thickness of Product |
0.2~6 mm |
||||
|
Product Width (mm) |
100-500 |
500-920 |
1200 |
1250 |
1500 |
|
Thickness of Chilled Layer |
10~25 mm |
||||
|
Hardness of Roller |
68~72 HRC |
||||
|
Power Supply |
AC 380V 50HZ 3P (customize available) |
||||
|
Motor Power (Kw) |
15 |
55/18.3 |
75/25 |
100/33.3 |
160 |
|
Air Pressure |
0.6~0.8 Mpa |
||||
|
Cooling Water Pressure |
0.4 Mpa |
||||
|
Dimension (m) |
4.0x1.6x2.2 |
4.4x1.8x2.3 |
5.0x1.9x2.6 |
6.9x2.6x3.8 |
7.2x2.8x4.0 |
|
Weight (t) |
8 |
14 |
18 |
33 |
62 |
Wood Pallet & Film Wrap ( Texitile Calender )
Texitile Calender
1. One year warranty
2. Engineers available to service machinery overseas (installation, debugging, commissioning and maintenance.)
3. Overseas service center available (in Europe, Japan, Dubai, etc.)
4. Life-long technical support
